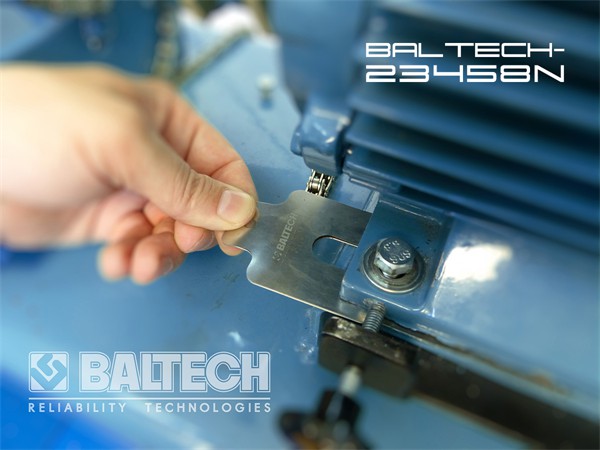

The calibration shims BALTECH-23458N Series are used for machine alignment during assembly and repair works.
The sets consist of standard U-shaped shims, which allow to easily select a required shim thickness for vertical alignment.
The alignment shims are made of steel that ensures their longevity, while a perfect surface quality excludes damping of installed machines.
BALTECH company offers you the steel shims of six different sizes 2, 3, 4, 5, 8 and Small in thickness 0.05; 0.075; 0.10; 0.125; 0.20; 0.25; 0.40; 0.50; 0.70; 1.00; 2.00; 3.00 mm (0.002”; 0.003”; 0.004”; 0.005”; 0.008”; 0.010”; 0.015”; 0.020”; 0.027”; 0.039”; 0.079”; 0.118”). The sets contain 10 pieces. Upon your request we can offer you the sets with shims of other sizes.
Every enterprise should have universal sets for fast and qualitative alignment. We are ready to deliver you these sets in handy cases of 240 pieces, 360 pieces, 480 pieces and 580 pieces of different sizes. We also offer you the shims with two slots for alignment on housing bearings.
Advantages of the calibration shims BALTECH-23458N Series:
- Easy to install and remove shims;
- High accuracy;
- No burrs;
- The thickness is marked on every shim in mm and inch
According to the alignment rules not more than three shims should be installed under one support! Use of Baltech calibration shims reduces time, required for alignment procedure, while the result remains for a long! Do not waste your time and money on making shims of cooper, transom iron or other material!
Technical characteristics
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
>> > >
| Sets of calibration shims BALTECH | |||
| Sets | Type | Content | Q-ty, pcs. |
| 47-20 | BALTECH – 2N | Shim set 2 | 120 |
| 47-30 | BALTECH – 3N | Shim set 3 | 120 |
| 47-40 | BALTECH – 4N | Shim set 4 | 120 |
| 47-50 | BALTECH – 5N | Shim set 5 | 120 |
| 47-80 | BALTECH – 8N | Shim set 8 | 120 |
| S-Small | BALTECH – Small | Shim set Small | 80 |
| 4723000-0 | BALTECH – 23N | Shim sets 2 and 3 | 240 |
| 4720400-0 | BALTECH – 24N | Shim sets 2 and 4 | 240 |
| 4720050-0 | BALTECH – 25N | Shim sets 2 and 5 | 240 |
| 4720008-0 | BALTECH – 28N | Shim sets 2 and 8 | 240 |
| 4703400-0 | BALTECH – 34N | Shim sets 3 and 4 | 240 |
| 4703050-0 | BALTECH – 35N | Shim sets 3 and 5 | 240 |
| 4703008-0 | BALTECH – 38N | Shim sets 3 and 8 | 240 |
| 4700450-0 | BALTECH – 45N | Shim sets 4 and 5 | 240 |
| 4700408-0 | BALTECH – 48N | Shim sets 4 and 8 | 240 |
| 4723400-0 | BALTECH – 234N | Shim sets 2, 3 and 4 | 360 |
| 4723050-0 | BALTECH – 235N | Shim sets 2, 3 and 5 | 360 |
| 4723008-0 | BALTECH – 238N | Shim sets 2, 3 and 8 | 360 |
| 4720450-0 | BALTECH – 245N | Shim sets 2, 4 and 5 | 360 |
| 4720058-0 | BALTECH – 258N | Shim sets 2, 5 and 8 | 360 |
| 4703408-0 | BALTECH – 348N | Shim sets 3, 4 and 8 | 360 |
| 4700458-0 | BALTECH – 458N | Shim sets 4, 5 and 8 | 360 |
| 4723450-0 | BALTECH – 2345N | Shim sets 2, 3, 4 and 5 | 480 |
| 4723408-0 | BALTECH – 2358N | Shim sets 2, 3, 5 and 8 | 480 |
| 4720458-0 | BALTECH – 2458N | Shim sets 2, 5, 5 and 8 | 480 |
| 4703458-0 | BALTECH – 3458N | Shim sets 3, 4, 5 and 8 | 480 |
| 4723458-0 | BALTECH – 23458N | Shim sets 2, 3, 4 ,5 and 8 | 600 |
| 8035 | 234N | Transportation case for the shim sets 2, 3 and 4 | 1 |
| 8038 | 5 | Transportation case for the shim sets 5 | 1 |
